Static indeterminancy

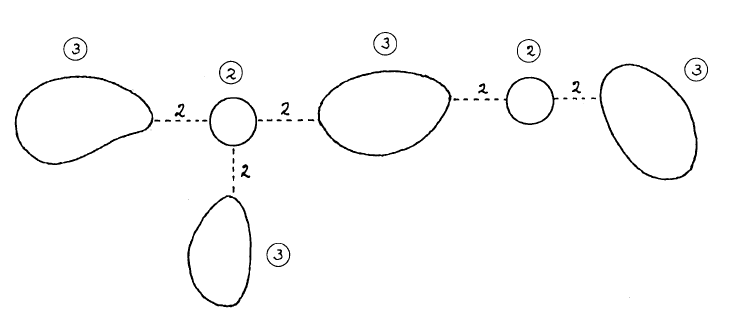

Figure 4.50 Hartsuijker & Welleman (2006)
A distinction can be made whether or not equilibrium relations are enough to solve:
- support reactions (external static indeterminancy)
- section forces (internal static indeterminancy)
These two categories are treated together in chapter 4.5.2 and 4.5.3 of the book Engineering Mechanics Volume 1 Hartsuijker & Welleman, 2006.
For truss structures, the analysis is simplified as shown in chapter 9.2.2 of the book Engineering Mechanics Volume 1 Hartsuijker & Welleman, 2006.
Exercises¶
- If you’re a TU Delft student, you can practise with the following
exercises. - Exercises 4.11 - 4.22, in chapter 4.6 of the book Engineering Mechanics Volume 1 Hartsuijker & Welleman, 2006. Ignore questions regarding kinematic determinancy. Answers are available on this website.
- Exercise 9.6, in chapter 9.4 of the book Engineering Mechanics Volume 1 Hartsuijker & Welleman, 2006. Ignore questions regarding kinematic determinancy. Answers are available on this website.
- Hartsuijker, C., & Welleman, J. W. (2006). Engineering mechanics: Volume 1: Equilibrium. In Engineering Mechanics: Volume 1: Equilibrium. Springer Dordrecht. 10.1007/978-1-4020-5483-9
