Diagrams

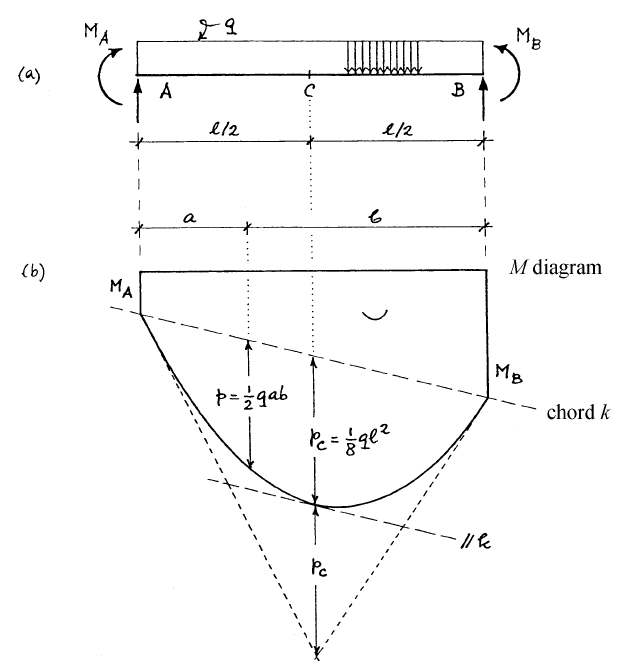

Figure 12.14 Hartsuijker & Welleman (2006)
This is treated in chapter 12 (except for 12.5) and 13 of the book Engineering Mechanics Volume 1 Hartsuijker & Welleman, 2006.
General exercises¶
The following exercises can be made with any method of your liking:
- If you’re a TU Delft student, you can practise with the following
exercises with short questions - If you’re a TU Delft student, you can practise with the following exercises on drawing full diagrams
- Exercises in chapter 12 of the book Engineering Mechanics Volume 1 Hartsuijker & Welleman, 2006, answers are available on this website
- Exercises in chapter 13 of the book Engineering Mechanics Volume 1 Hartsuijker & Welleman, 2006, answers are available on this website: 13.1 - 13.9, 13.13 - 13.67
- Hartsuijker, C., & Welleman, J. W. (2006). Engineering mechanics: Volume 1: Equilibrium. In Engineering Mechanics: Volume 1: Equilibrium. Springer Dordrecht. 10.1007/978-1-4020-5483-9
