... using Williot

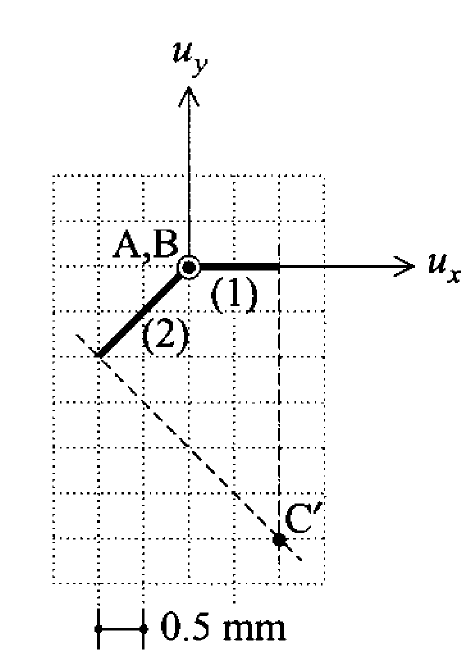

Figure 7.6 Hartsuijker & Welleman (2007)
This is treated in chapter 7.2 and 7.3 of the book Engineering Mechanics Volume 2 Hartsuijker & Welleman, 2007. There’s a mistake in the figures in chapter 7.3. The vertical height of the truss structure should be . The scale and williot diagrams are correct.
Exercises¶
- If you’re a TU Delft student, you can practise with the following
exercises - Exercises in chapter 7.5 of the book Engineering Mechanics Volume 2 Hartsuijker & Welleman, 2007, answers are available on this website: 7.1 - 7.44.
- Hartsuijker, C., & Welleman, J. W. (2007). Engineering Mechanics: Volume 2: Stresses, strains and displacements. Springer Netherlands. 10.1007/978-1-4020-5763-2
